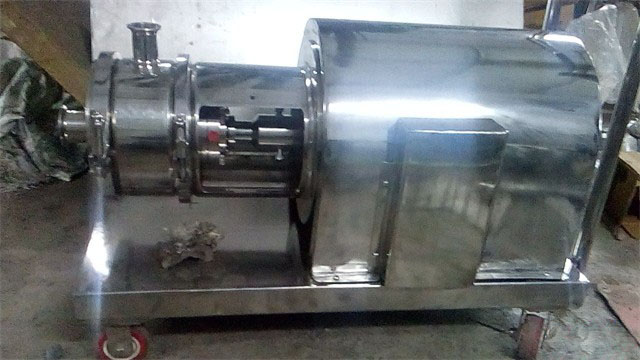

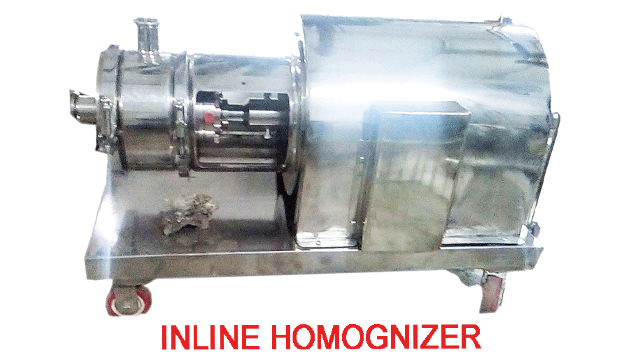

INLINE HOMOGENIZER
Application
KPM Pharma homogenizer is used to mix one or more substances within a liquid. This device allows to micronize and scatters the particles suspended in the fluid, so that the product become highly stable, no matter the followings treatments and stockings the products may undergo. KPM Pharma homogenizer delivers unparalleled consistency and control of high shear process applications such as, Immiscible Phase Emulsifying, Homogenizing, Wet Grinding, Texturing, DE agglomeration and Fine Dispersing.
Process

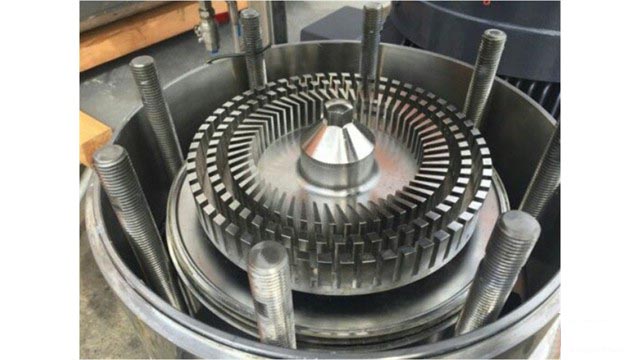

The product arrives to the homogenizing at a low speed and at high pressure (cause by the little gape between the passing head and collision head). During the passage the product is subjected to numerous forces which cause the particles micronization: a violent acceleration followed by an immediate deceleration that produces cavitation’s and then the globules explosion. Strong turbulence united to high frequency vibrations. Collision cutting strengths derived from the laminar passage between the homogenizing valve surfaces and the following impact with the collision ring.
Salient features
- Inline Homogenizer Machine Design is as per cGMP.
- All Product Contact parts SS 316 / 316L & Non Contact parts SS 304.
- Suitable for making ointment, cream, shampoo, lotion, syrup and other emulsion.
- Complete process of dispersing, high shearing, emulsifying and homogenizing.
- Capacity 1 HP To 30 HP
- Flow rate by water from 0.5m3/h to 100m3/h
- Cooling system for the mechanical seal for long high shear mixing time.
- Tri-clover connections provided for easy operating and maintenance purpose.
