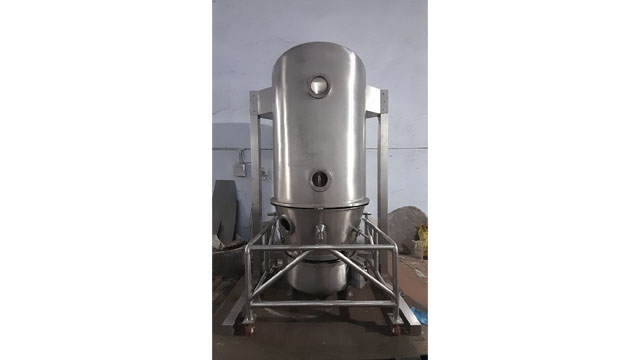

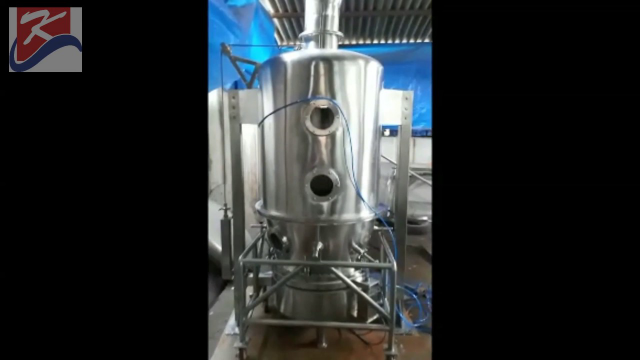

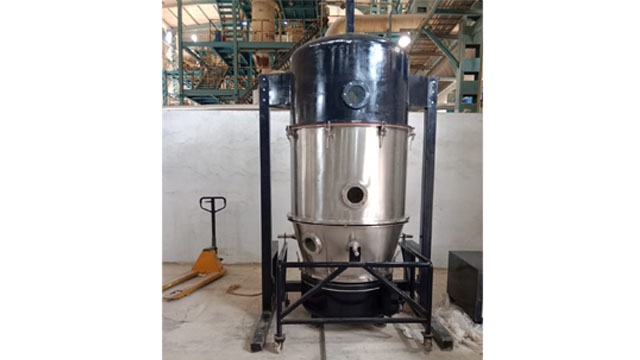

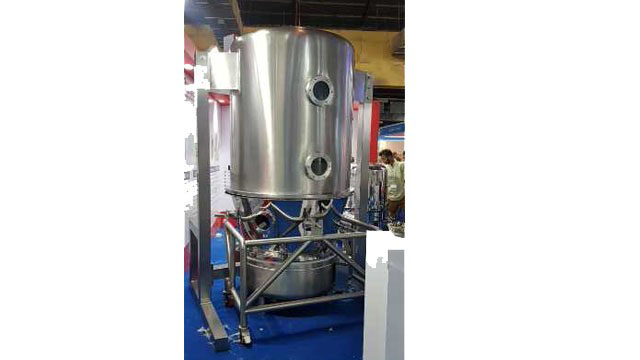

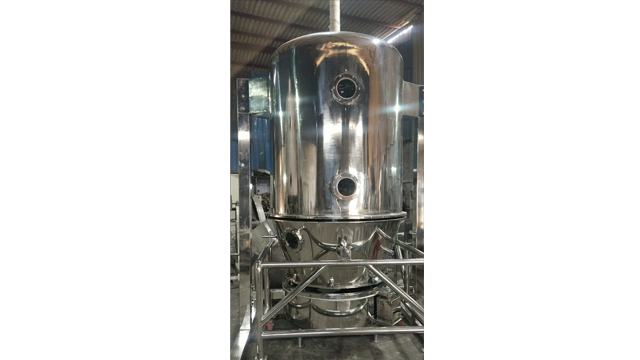

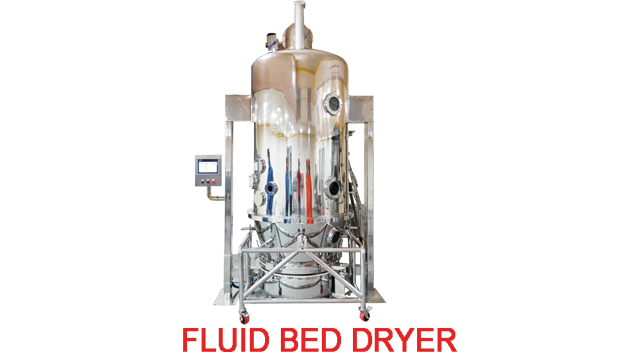

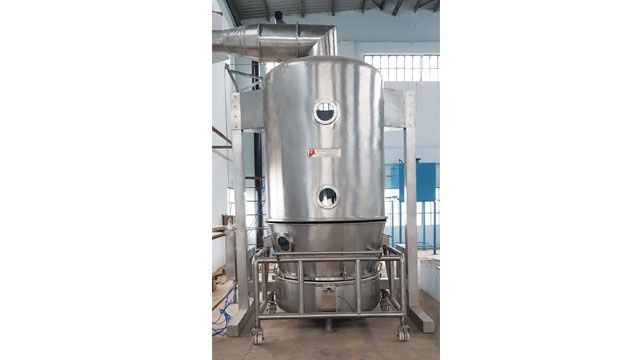

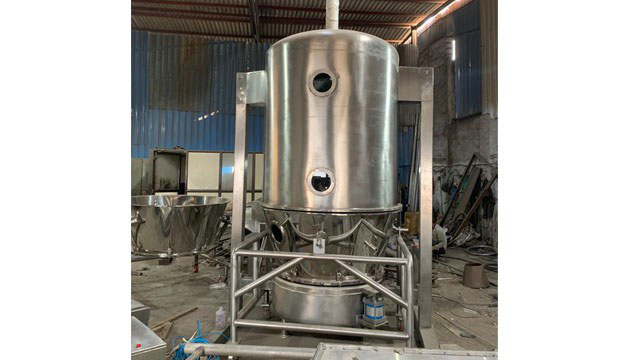

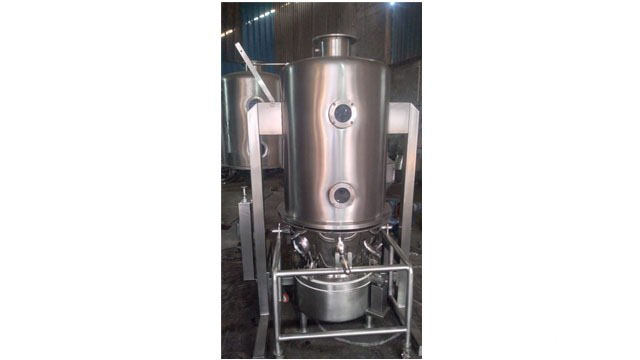

FLUID BED DRYER
Application
KPM PHARMA MACHINERIES Fluid Industries.Bed Dryer Process involves fast drying, cooling and agglomeration of particulate materials. It is ideal for heat sensitive and non-heat sensitive products in Pharmaceuticals, Chemicals and Biochemical and Food.
Process
The machine has a solid particle bed where the particles are spun by passing of air stream towards the upside through special perforated sheets designed for this process. The velocity of air in the upward direction is maintained in order to lift the particles to move them. The same motion is then utilized to mix the particles as well as move them ahead. The processed and heated air is then passed through them to dry the solid particles. The fluid processor is designed in such a manner that the particles are then glued to bigger particles and result as granules.
Salient features
- Fluid Bed Dryer Machine Design is as per cGMP.
- All contact parts AISI 316 & non-contact parts AISI 304.
- Single piece construction with Integrated retarding expansion chamber cum filter bag housing.
- Batch type dryer with available capacity 30 kg to 500 kg. Batch size.
- Auto pneumatic filter bag shacking system/ Auto pneumatic Telescopic Shaking system for filter bag.
- Pneumatic Sealing of Filter Bag and Product container by inflatable silicon rubber tube.
- Sampling pot on product container.
- Pro air filtration by 20-micron filters and secondary by 5-micron Final air filtration through HEPA (0.3 micron) filters as an optional feature.
- Washable filter media, FDA approved.
- PLC / HMI Or FLP Control Panel along with Power Panel & Pneumatic Panel.
- Dynamic balance fan has High pressure backward curve design blower.
